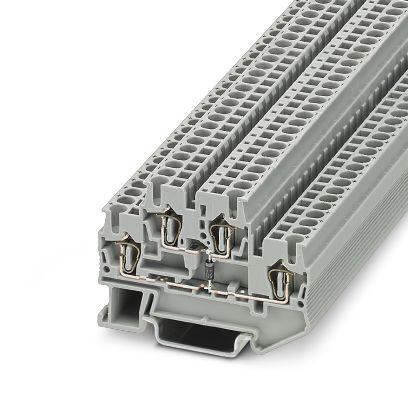

Phoenix Contact 3031563 Component Terminal Block, The Max. Current Is Determined By The Diode. Installed: Diode 1N 4007, Reverse Voltage: 1300 V, Maximum Continuous Curren

Phoenix Contact part number 3031563. Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray
